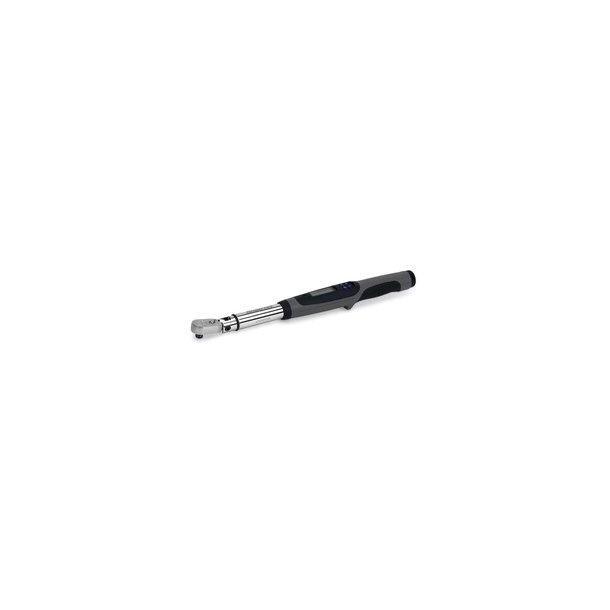

Digital momentnøgle med indbygget gradmåler.
Den rigtige momentnøgle til strækbolte, f.eks. topstykke. Du sparer meget tid ved montering af topstykke, da du har momentnøgle og gradnøgle i et værktøj.
Se video i vores videoarkiv
Square Drive, inches 3/8
Head Type Sealed Flex Head
Gear Teeth 36
Gear Action 10º
Head Depth, inches 5/8
Head Width, inches 1 5/32
Angle Range 5° to 360°
Angle Accuracy (72° F) ±1% of reading ± 1@angular velocity>10°/sec.<180°/sec
Range, in. lb. 60-1200
Range, ft. lb. 5-100
Range, Nm 13.5-135.0
Torque Accuracy: 20% to 100% of full scale ±2%CW, ±3%CCW
Torque Accuracy: 10% to 19% of full scale ±4%CW, ±6%CCW
Torque Accuracy: 5% to 9% of full scale ±8%CW, ±10%CCW
Operating Temperature 40-110°F (5-42°C)
Storage Temperature 0 to 122°F (-20 to 50°C)
Humidity up to 90% non-condensing
Housing Color Grey
Display Four digit LCD, Unit of Measure, Angle, CCW and battery condition
Length, inches (mm) 17 (431)
Weight, lbs. (kg) 2.2 (1.0)
Ratchet Service Kit RKRF936
Flex Joint Repair Kit RKRT841JT
Ratchet mechanism features Snap-on Dual 80 Design with only 4.5° of ratchet arc.
Cycle count to ensure how many fasteners have been torqued.
Measures in-lb, ft-lb, Nm, and degrees at the touch of a button.
Each button has ONLY one function (power on, select unit of measure, increase/decrease fastener torque setting, increase/decrease fastener angle setting).
Four-digit LCD Display shows unit of measure, angle, CCW and battery condition.
Comfortable, non-slip grip handle.
Stand on handle bottom keeps tool from rolling off flat surfaces.
Sealed key pad keeps out dust and grit prolonging tool life.
Flex-head ratchet moves 15° in both directions.
High strength sealed ratchet head eliminates routine maintenance.
All models have a Low Battery Indicator and Auto Shut-off (after 2 minutes idle).
Designed to withstand shocks without failure.
Splash-proof, protects against water and most shop chemicals.
Includes storage case and (3) "AA" batteries.
EU/CE-DE, ES, FR, GB, IT, NL and JP .
Additional technical information is available at www.torqueinlesstime.com.
Note:
The certification of accuracy provided per ASME and ISO Standards is 20% to 100% of full scale. For more information, go to www.torqueinlesstime.com.
Additional Description:
Snap-on® TechAngleT wrenches eliminate the need for angle gauges and protractors, providing the most accurate and fastest way to achieve torque plus angle tightening sequences now specified by many manufacturers.
Digital readout shows you your torque setting, and then changes to the follow up angle you desire.
Not affected by ratcheting.
Angle calculation based on the same gyroscope technology that keeps helicopters flying level.
Display Resolution 1°.
More information is available at www.torqueinlesstime.com.
Note:
The certification of accuracy provided per ASME and ISO Standards is 20% to 100% of full scale. For more information, go to www.snapon.com/torque/techangle and www.torqueinlesstime.com
