POWER WITH COMFORT.
30% more powerful than the competition.
Increased stroke (3"/76.2mm) is 15% longer than the competition.
Heavier piston is 40% heavier than the competition.
CONTROL WITH POWER. (Less vibration)
Vibration is 300% less than competitive units.
Snap-on's exclusive Dual Elastomer Cushion (DEC) isolates vibrations.
COMFORT WITH CONTROL.
High grade, steel barrel.
Variable speed, featherable soft elastomeric trigger for comfort and control.
Balanced T-handle design.
New cushion grip handle.
Built-in 4-position air regulator.
Front hammer bore bit is hardened to extend tool life.
Kevlar reinforced flutter disc prolongs tool life.
Lightweight -only 4.7 lbs.
Direct front multiport exhaust.
Optional Accessories: PH3050BOOT (Protective Boot), PH200D (Retainer Chuck)
2 Year Warranty
Bore Diameter, inches (mm) 3/4 (19)
Vibration Level, m/s² 1.5
Air Inlet Thread Size 1/4"-18 NPT
Air Consumption, free speed, cfm (scfm) [l/min] 1.8 (13) [51]
Length, inches (mm) 8.9 (227)
Sound Level dBa Pressure 94
Shank Opening, inches (mm) 0.401 (10.1)
Blows per Minute, BPM 2500
Recommended Air Pressure, psig (kPa) 90 (620)
Recommended Hose Size, inches (mm) 5/16 (8) ID Min.

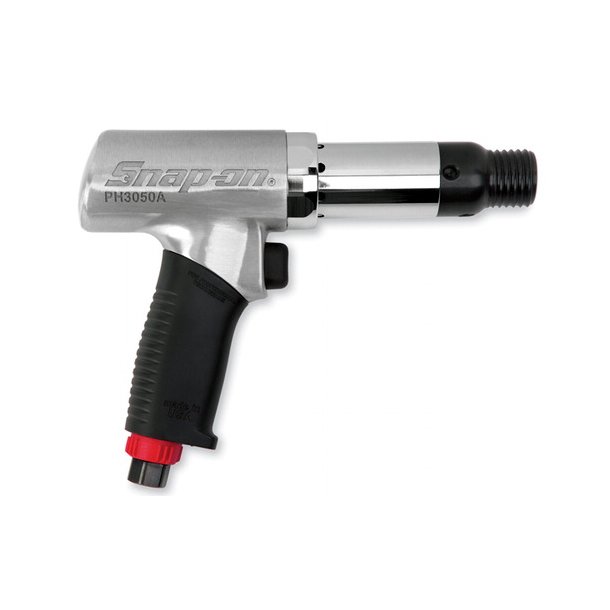

Description Super-Duty Air Hammer
Chuck Bit Size, inches/mm .401 (10.2) shank diameter
Air Consumption, average, cfm (scfm) [l/min] 1.8 (12) [60]
Piston Stroke, inches (mm) 3 (76)
Vibration Level 1.5 m/s2
Vinyl Boot PH3050BOOT (optional)
Sound Pressure Level, dBa 94
Weight, lbs. (kg) 5.9 (2.7)
Overall Length, inches (mm) 8.95 (227)
30% more powerful than the competition.
Increased stroke (3"/76.2mm) is 15% longer than the competition.
Heavier piston is 40% heavier than the competition.
CONTROL WITH POWER. (Less vibration)
Vibration is 300% less than competitive units.
Snap-on's exclusive Dual Elastomer Cushion (DEC) isolates vibrations.
COMFORT WITH CONTROL.
High grade, steel barrel.
Variable speed, featherable soft elastomeric trigger for comfort and control.
Balanced T-handle design.
New cushion grip handle.
Built-in 4-position air regulator.
Front hammer bore bit is hardened to extend tool life.
Kevlar reinforced flutter disc prolongs tool life.
Lightweight -only 4.7 lbs.
Direct front multiport exhaust.
Optional Accessories: PH3050BOOT (Protective Boot), PH200D (Retainer Chuck)
2 Year Warranty
Bore Diameter, inches (mm) 3/4 (19)
Vibration Level, m/s² 1.5
Air Inlet Thread Size 1/4"-18 NPT
Air Consumption, free speed, cfm (scfm) [l/min] 1.8 (13) [51]
Length, inches (mm) 8.9 (227)
Sound Level dBa Pressure 94
Shank Opening, inches (mm) 0.401 (10.1)
Blows per Minute, BPM 2500
Recommended Air Pressure, psig (kPa) 90 (620)
Recommended Hose Size, inches (mm) 5/16 (8) ID Min.
Description Super-Duty Air Hammer
Chuck Bit Size, inches/mm .401 (10.2) shank diameter
Air Consumption, average, cfm (scfm) [l/min] 1.8 (12) [60]
Piston Stroke, inches (mm) 3 (76)
Vibration Level 1.5 m/s2
Vinyl Boot PH3050BOOT (optional)
Sound Pressure Level, dBa 94
Weight, lbs. (kg) 5.9 (2.7)
Overall Length, inches (mm) 8.95 (227)
